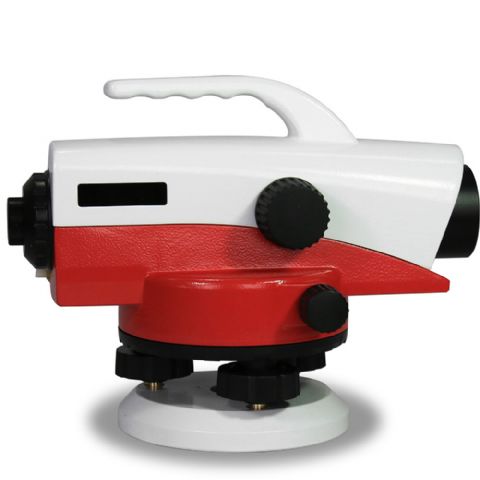

32-36X Automatic Level High magnification Dumpy Level Surveying
Zoom Browse
Product Name: 32-36X Automatic Level High magnification Dumpy Level Surveying
Product Numbers: AULE-98201
Product Specifications: 32-36X
Product Unit: Angle of field of view: 1°17.5′
Product Remark: Clear objective aperture: 40mm
Product Class:Measuring and Testing Instruments > Survey And Construction Instruments > Automatic Level Dumpy Level
Product Details
【DateTime:2023-10-04 Browse:】【Font: Big Mid Small】【Print】【Close】
32-36X Automatic Level High magnification Dumpy Level Surveying

Specification:

Model AULE-98201-32 AULE-98201-32 AULE-98201-36
Telescope Magnification 32X 34X 36X
Standard deviation for 1km double-run leveling 1.5mm 1.0mm 1.0mm
Setting accuracy ±0.3″ ±0.3″ ±0.3″

Compensator working range: ±15′

Telescope image: Erect

Clear objective aperture: 40mm

Angle of field of view: 1°17.5′

Shortest focusing distance: 0.5M

Stadia Multiplication constant/Addition constant: 100/0

Circular level sensitivity: 8′/2mm

Horizontal circle: 360° or 400gon

Dust/waterproof : IP54

Compensator type: X type hanging wire and air damping or magnetic damping

Size:229mm×145mm×175mm

Net weight: 1.8Kg

Thread tripod:M16 or 5/8”
