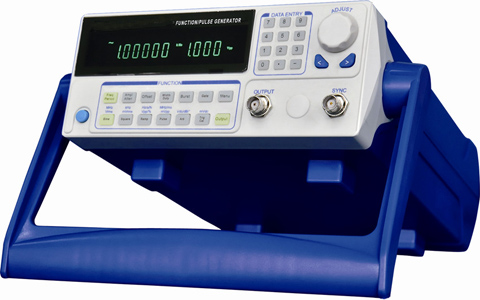

Pulse/Function Generator With 16 Waveforms
Features
-
One dual-purpose instrument --function generator & pulse generator
-
Excellent burst characteristic
-
Standard interface of USB Device
-
Specification
|
Main Specifications
|
FUGE-5305
|
FUGE-5310
|
FUGE-5320
|
|
Frequency
|
Range
|
Sine
|
10μHz~5MHz
|
10μHz~10MHz
|
10μHz~20MHz
|
|
Pulse/Square
|
10μHz~5MHz
|
|
Others
|
10μHz~1MHz
|
|
Resolution
|
10μHz, 6 digits
|
|
Accuracy
|
±50ppm
|
|
Waveform
|
Type
|
16 waveforms including Sine, Square, Ramp, Exponent, Logarithm, Noise, etc
|
|
Length
|
1024 points
|
|
Sample Rate
|
100 MSa/s
|
|
Amplitude Resolution
|
8 bits
|
|
Amplitude
|
Range
|
frequency≤8MHz：0~10Vpp(50Ω load) 0~20Vpp(open-circuit load)
frequency>8MHz：0~9Vpp(50Ω load) 0~18Vpp(open-circuit load)
|
|
Resolution
|
5mVpp(amplitude>2Vpp) 0.5mVpp(amplitude≤2Vpp)
|
|
Offset
|
Range
|
±5Vdc(50Ω load) ±10Vdc(open-circuit load)
|
|
Resolution
|
5mVdc
|
|
Characteristics (Pulse, Square and Ramp)
|
Edge Time(Pulse/Square)
|
≤35ns
|
|
Duty Cycle of Square
|
0.1％~99.9％(Limited by edge time)
|
|
Pulse Width of Pulse
|
100ns~2000s
|
|
Symmetry of Ramp
|
0.0%~100.0％
|
|
Burst
|
Waveform
|
16 kinds of waveforms including Sine, Square, Ramp, etc.
|
|
Repeated Period
|
1μs~20s
|
|
Pulse Count
|
1~1000000
|
|
Output Mode
|
Count, Gate
|
|
Trigger Source
|
Internal continuous, External, Manual
|
|
Trigger Input
|
Input Level
|
TTL compatible
|
|
Input Impedance
|
10kΩ, DC couple
|
|
Dimensions & Weight
|
322×256 ×102 mm, Approx.2.0kg
|
Package:
|
Power cord
|
1
|
|
CD (Software + User’s Manual)
|
1
|
