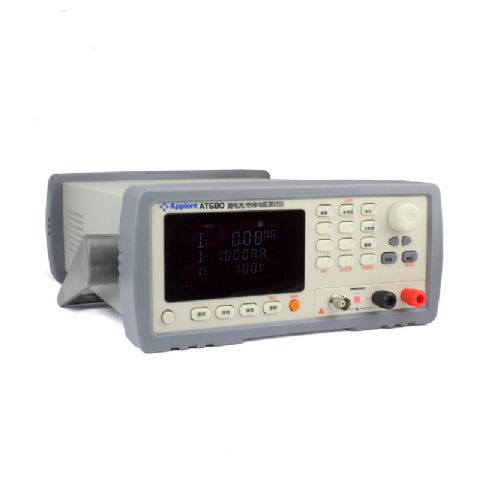

Leakage Current Meter Insulation Resistance Meter 1V~650VDC
Feature:
-Electrolytic capacitor leakage current (LC) test function
-Correction: OPEN
-Comparator: 1 files, GD/NG alarming beeper function
-Trigger Mode: Internal
-Interface: NONE
-High accuracy up to 1%
-1V to 650V DC voltage selectable
-Automatic and manual ranging
-Test both leakage current and insulation resistance
Application:
-Electrolytic capacitor
-Aluminium-foil withstand voltage testing
-Active voltage/leakage current checking of absorbers
-Neon lamp
-Testing zener diodes
Specification:
| Parameters |
Leakage current and insulation resistance |
| Accuracy |
1% |
| Output Voltage |
1V~650VDC |
| Measurement Range |
I:1nA~20mA R:1k~325G |
| Max Reading |
9999 |
| Range |
Automatic and Manual |
| Charging Current |
200mA(MAX) |
| Speed |
55t/s 15t/s 3t/s |
| Result Display |
Show, current, resistance, peak value, and sorting result |
| Charging Timer |
999.9s |
| Comparator |
30 sets record, GD/NG |
| Beep |
GD NGOFF setting and volume setting |
| Interface |
RS-232 Handler |
Working Environment
-Temperature: 0°C to 55°C
-Operating stated accuracy：<80% RH
-Temperature range at calibration: 23°C±5°C
-Stated accuracy： <70%RH
Packcage:
-AT680 1pcs
-English manual 1 pcs
-Power Cable 220V/50Hz 1 pcs
-Fuse (250V, 1A Slow-blow) 2pcs
-Test Clip Leads 1pcs
