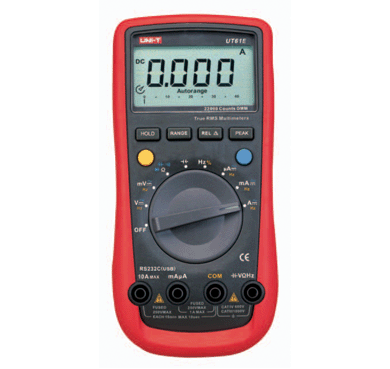

Digital Multimeters UT61E
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
220mV/2.2V22V220V/1000V
|
±(0.1%+2) |
| AC Voltage |
220mV/2.2V/22V/220V/750V |
±(0.8%+10) |
| AC Current |
220mA/2200mA/22mA/220mA/2.2A/10A |
±(0.8%+10) |
| DC Current |
220mA/2200mA/22mA/220mA/2.2A/10A |
±(0.5%+10) |
| Resistance |
220W/2.2KW/22kW/220kW/2.2MW/22MW/220MW |
±(0.5%+10) |
| Capacitance |
22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF |
±(3.0%+5) |
| Frequency |
10Hz-220MHz |
±(0.01%+5) |
| Frequency Response |
0 |
45Hz~10kHz |
| Duty Cycle |
0.1%~99.9% |
YES |
| Special Functions |
|
|
| Auto/Manual Ranging |
|
YES |
| Diode |
|
YES |
| RMS |
|
YES |
| Continuity Buzzer |
|
YES |
| Data Hold |
|
YES |
| Peak Value |
|
YES |
| Display Backlight |
|
YES |
| REL |
|
YES |
| Sleep Mode |
Around 15 Minutes |
YES |
| Analogue Bar Graph |
|
46 |
| RS232 |
|
YES |
| Input Protection |
|
YES |
| Input Impedance for DC Voltage Measurement |
Around 10MW |
YES |
| Low Battery Display |
≤7.5V |
YES |
| Max Display |
|
22000 |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
65 x 43mm |
| Product Colour |
Red and Grey |
| Product Net Weight |
370g |
| Product Size |
180 x 87 x 47mm |
| Standard Accessories |
Battery, Test Lead, English Manual, Multi-Purpose Socket, RS232 Interface Cable,Software |
| Optional Accessories* |
USB Interface Cable |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
20pcs |
| Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
12kg |
