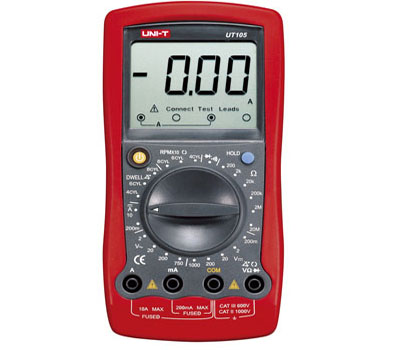

In 1999 counts and 3-1/2 digits, the UT105 Meter is a manual testing automotive digital Multimeter.  Spotting a unique design with an extra large screen, this meter has useful features such as a fully-functional symbol display, connect prompt, and full testing overload protection.  For this reason, it emerges as an electric Meter with more outstanding performance for safer operation than other Meters.  In addition to the automotive dwell and tach (rotation speed), this Meter can be used to test the AC voltage, DC voltage, DC current, resistance, diode and continuity.

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	±(0.5%+5)
AC Voltage	2V/20V/200V/750V	±(0.8%+5)
DC Current	200mA/10A	±(0.8%+5)
Resistance	200W/2kW/20kW/200kW/2MW/20MW	±(0.8%+5)
Special Functions
Fused 10A Range		YES
Dwell	4Cyl/6Cyl/8Cyl	±(3%+5)
Tach	4Cyl/6Cyl/8Cyl	±(3%+5)
Diode		YES
Continuity Buzzer		YES
Data Hold		YES
Full Icon Display		YES
Low Battery Display		YES
Input Impedance for DC Voltage Measurement	Around 10MW	YES
Max. Display	1999	YES

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	60 x 54mm
Product Colour	Red Meter and Grey Holster
Product Net Weight	352g (Including Holster)
Product Size	179 x 88 x 39mm
Standard Accessories	Test Lead, Battery, English Manual, Holster
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	598 x 418 x 340mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
