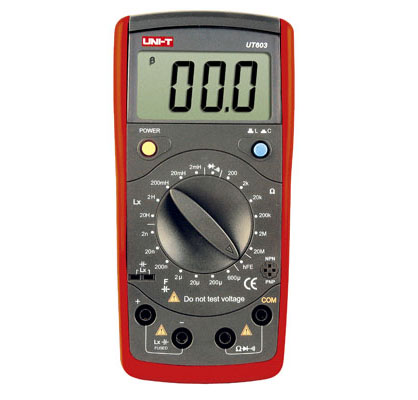

Digital Inductance Capacitance Meter Model UT602/UT603 is a 3 1/2 digits with steady operations, fashionable design and highly reliable hand-held measuring instrument. The UT602 can measure inductance, while UT603 can measure capacitance and inductance. They both can measure resistance, transistor, diode and continuity buzzer
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| Resistance |
200W/2kW/20kW/200kW/2MW/20MW |
±(0.8%+1) |
| Capacitance |
2nF/20nF/200nF/2mF/20mF/200mF/600mF |
±(1%+5) |
| Inductance |
2mH/20mH/200mH/2H/20H |
±(2%+8) |
| Special Functions |
|
|
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| Transistor |
|
YES |
| Low Battery Display |
|
YES |
| Max. Display |
1999 |
|
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
61 x 32 mm |
| Product Colour |
Grey Holster-Red |
| Product Net Weight |
312g |
| Product Size |
172 x 83 x 38mm |
| Standard Accessories |
Test Clip, Battery, English Manual, Holster |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
40 pcs |
| Standard Carton Measurement |
598 x 418 x 340mm
(0.085CBM Per Standard Carton)
|
| Standard Carton Gross Weight |
21kg |
