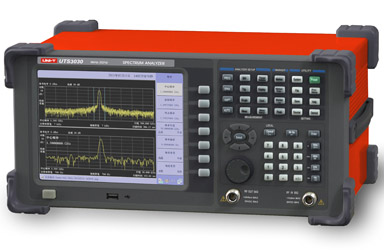

Spectrum Analyzer
Full digital step scanning and IP technology realizing high performance and easy to operate.
Frequency range: 9kHz~3GHz
Resolution Bandwidth: 10Hz~3MHz(1-10sequence)
3G signal generator, can be used as a tracing generator and independert signal source.
Combine frequency measure, AM and FM demodulation, adjacent-channel power measure, chromatogram function.
8.4 inch LED disply with backlight,
Chinese and English menu
Interface: USB, LAN、VGA、GPIB、RS232 various communication interface USB,LAN ,VGA,GPIB,RS232
Continuously and adjustable full digital IF
Use the latest full digital IF design technology, realizing excellent linearity and accuracy
Continuously variable RBW filter
Realizing exact and predictable resolution bandwidth
Distinguish the two signal which only have 5Hz frequency difference, reduce the average noise level.
Similar to Gaussian shape filter, provide better filter shape factor
various video detection mode
Connect PC, printer and network. Use USB, LAN and RS232 remote control, SCPI commands can quickly set up and upgrade the integrate test system
|
frequency
|
|
frequency range
|
|
9kHz to 3GHz
|
|
frequency resolution
|
|
1Hz
|
|
frequency reading accuracy
|
|
±（frequency scale reading×frequency standardaccuracy +1%×sweep range+10%×RBW+0.5×[sweep range/（fflying spot-1）]+1Hz）
|
|
Internal reference（10MHz）
|
ageing rate
|
<3ppm/year
|
|
temperature drift
|
<2ppm （15℃ to 35℃）
|
|
RBW
|
|
range（<1kHz option）
|
|
5Hz to 500kHz（1-10sequence），1MHz，3MHz
|
|
seleectivity(60dB/3dB)
|
RBW≤500kHz
|
<5：1 typical value
|
|
Accuracy
|
<5% typical value
|
|
Video bandwidth（VBW）
|
|
10Hz至3MHz
|
|
Display average noise level(DANL)(10Hz resolution bandwidth)
|
|
1MHz
|
|
-120dBm
|
|
120MHz
|
|
-124dBm
|
|
600MHz
|
|
-122dBm
|
|
1250MHz
|
|
-125dBm
|
|
1850MHz
|
|
-123dBm
|
|
2350MHz
|
|
-121dBm
|
|
2650MHz
|
|
-120dBm
|
|
3000MHz
|
|
-118dBm
|
|
Phase noise
|
|
|
|
Frequency offset 10kHz : -85dBc/Hz
|
|
|
|
Frequency offset 1MHz: -110dBc/Hz
|
|
|
remark：typical fc=500MHz，RBW<1kHz，sampling detection,trace average time≥10
|
|
Sweep time
|
|
range100Hz≤SPAN≤3GHz
|
|
10ms to 3000s
|
|
Span=0
|
|
1ms to 3000s
|
|
Sweep time
|
|
Countinus,single
|
|
frequency counter
|
|
counter resolution
|
|
1Hz、10Hz、100Hz、1kHz
|
|
counter indeterminacy
|
|
Frequency indication×frequency standard accuracy + counter accuracy
|
|
Amplitude accuracy（20℃ to 30℃）
|
|
Overall amplitude accuracy（90%）
|
Input signal range 0dBm to -50dBm
|
±1.5dB
|
|
Amplitude
|
|
Max safe input level
|
Average continuous power
|
+33dBm
|
|
max input DC voltage
|
|
50Vdc
|
|
Input attenuator
|
|
0 to 50dB
|
|
1dB compression point
|
|
+13dBm
|
| |
|
|
|
|
Stray and residual responses
|
|
TOI
|
>30MHz
|
+10dBm
|
|
Second harmonic distortion
|
|
+40dBm
|
|
Input related stray singal
|
|
<-60dBc
|
|
Residual responses
|
|
<-85dBm
|
|
Singal generator(optional)
|
|
Frequency range
|
|
1MHz to 3GHz
|
|
output power
|
|
-30dBm to 0dBm
|
|
flatness output
|
Tracking signal source
|
±3dB
|
|
Independent source
|
±2dB
|
|
input/output
|
|
RF input/output
|
|
N type（50Ω）
|
|
USB
|
|
USB 2.0
|
|
LAN
|
|
10/100 Base-T，RJ-45connector
|
|
RS232
|
|
9pin D-SUB
|
|
Reference input/output
|
10MHz，BNC
|
Input power 0dBm to +10dBm
|
|
|
Output power 0dBm±2dB
|
|
VGA（optional）
|
800×600，60Hz
|
15pin D-SUB
|
|
GPIB（optional）
|
|
IEEE-488bus connect
|
|
AM/FM demodulation(optional)
|
|
headset jack
|
|
General parameter
|
|
internal data storage
|
|
256MB
|
|
display
|
LEDbacklight
|
8.4inches TFT-LCD
|
|
Max weight
|
|
8kg
|
|
size
|
not include locator
|
390(W)*182(H)*230(D)mm
|
|
Working temperature
|
|
0degree to 40degree
|
|
storage temperature
|
|
-30degree to +70degree
|
|
power supply
|
input voltage range
|
220VAC±15%；110VAC±15%（optional）
|
|
AC frequency range
|
40Hz to 60Hz
|
|
Power consumption
|
Max
60W
|
