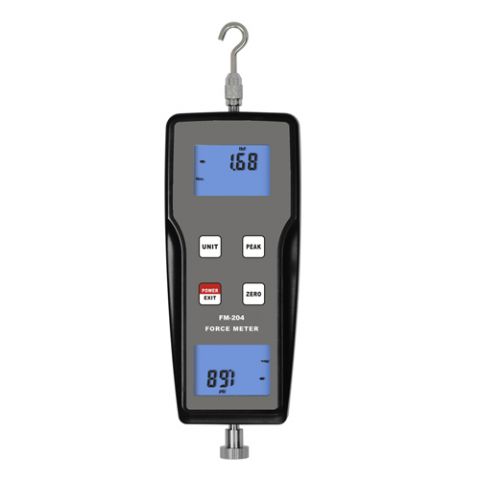

Digital Force Gauge Push and Pull Gauge
Zoom Browse
Product Name: Digital Force Gauge Push and Pull Gauge
Product Numbers: FOGAFM-204
Product Specifications: 1-100k
Product Unit: kgf, Lbf, N
Product Remark: Without data output
Product Class:Measuring and Testing Instruments > Force Measuring Instruments > Force Gauge
Product Details
【DateTime:2017-04-26 Browse:】【Font: Big Mid Small】【Print】【Close】
Digital Force Gauge Push and Pull Gauge

Specification:

Model
FM-204-
1K
FM-204-
2K
FM-204-
5K
FM-204-
10K
FM-204-
20K
FM-204-
50K
FM-204-
100K
Force Range ±1kgf ±2kgf ±5kgf ±10kgf ±20kgf ±50kgf ±100kgf
±1000gf ±2000gf ±5000gf ​ ​ ​ ​
±9.8N ±19.6N ±49N ±98N ±196N ±490N ±980N
±2.2Lbf ±4.4Lbf ±11Lbf ±22Lbf ±44Lbf ±110Lbf ±220Lbf
Resolution 0.001kgf 0.001kgf 0.001kgf 0.001kgf 0.01kgf 0.01kgf 0.01kgf
1gf 1gf 1gf ​ ​ ​ ​
0.001N 0.01N 0.01N 0.01N 0.1N 0.1N 0.1N
0.001Lbf 0.001Lbf 0.01Lbf 0.01Lbf 0.01Lbf 0.1Lbf 0.1Lbf



Accuracy ±0.5%FS±1Digit
Unit kgf,gf,N,Lbf
Measurement State Peak Value Measurement,Real Time Measurement
Display 2 Reversed 4Digit LCD
Power Off 10 Minutes Auto Power Off, Manual Power Off
Backlight Blue Backlight
Safe Load 150%FS(Buzzer Alarm Over 110%FS)
Power Supply 2X1.5 AA(UM-3)Battery or 6VDC Power Supply
Operating Temperature:0~40ºC
Conditions Humidity:<80%
Surrounding No Vibration Source or Corrosive Medium Around
Weight 390g
Size 211x80x36mm
