Precision Digital Inclinometer 0.001 Dual-axis Electronic Slope Gauge
Zoom Browse
Product Name: Precision Digital Inclinometer 0.001 Dual-axis Electronic Slope Gauge
Product Numbers: INCL-TLL-90S
Product Specifications: 0.001 degree inclinometer
Product Unit: Dual axis:±40°
Product Remark: Zero Offset Drift Angle Per °C:0.002° (typical)
Product Class:Measuring and Testing Instruments > Industrial Instruments > Industrial Digital Inclinometer
Product Details
【DateTime:2023-07-09 Browse:】【Font: Big Mid Small】【Print】【Close

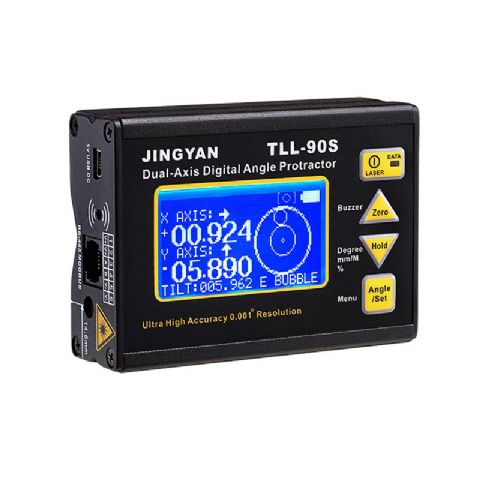

Precision Digital Inclinometer 0.001 Dual-axis Electronic Slope Gauge

Specification:

Measuring Range:Single axis:360°, Dual axis:±40°
Accuracy:
0 to 20°:±(0.005°)
20 to 70°:±(0.01°)
70 to 90°:±(0.005°)
Resolution:0.001°
Gyro Rotation Speed:<50°/s
Gyro Measurement Accuracy:0.5°
Gyro Measurement Resolution:0.1°
Response Time:0.7 second
Audio Sound:60dB @ 30cm
Zero Offset Drift Angle Per °C:0.002° (typical)
Operating Temperature:0 to 50°C (32 to 122°)
Storage Temperature:-10 to 60°C (14 to 140°)
User Interface:Mono-color LCD with backlight
Supply Power:Rechargeable Li-Polymer 3.7V
Charger Port:5V 500mA Mini type-B USB port
Power Consumption:10uA(Standby), 20mA(Operation)
Standby Battery Life:4000 hours
Operating Battery Life:30 hours
Size:93x66x28mm/3.66×2.6×1.1in
Weight:120g/4.2oz
Color:Black

Package Information:
Package Size:180x140x50mm/7.09×5.51×1.97in
Package Weight:400g/14oz
General Box Package

Package Included:
1 x Digital Angle Protractor
1 x Charger
1 x Data Cable
1 x Certification
1 x User Manual
