Features:
- ROHT-5015 Dial Indicator resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;
- ROHT-5015 force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life;
- ROHT-5015 oading, dwell and unloading is buffering by oil pump,it eliminates the operator s tiredness;
- ROHT-5015 intenter protector is available to improve the using lifetime of indenter.
Specifications:
| Product Name |

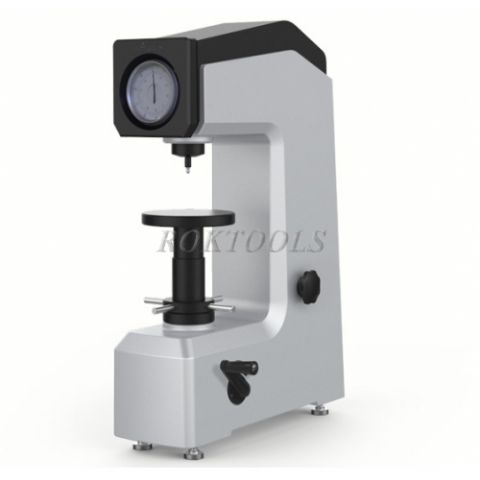

Electronic Superficial Rockwell Hardness Tester |
| Model |
ROHT-5015 |
| Rockwell Scales |
HRA,HRB,HRC |
| Preliminary Test Force |
10Kgf(98.07N) |
| Test Force |
60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N) |
| Hardness Indication |
Analogue Display |
| Resolution |
0.5HR |
| Loading Control |
Manual |
| Max. Height Of Specimen |
175mm |
| Instrument Throat |
165mm |
| Dimension(LxWxH) |
546x182x755mm |
|
|
620x460x870mm |
|
|
120Kg |
|
|
90Kg |
| Execution Standard |
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
Packing List:
- Hardness Tester ROHT-5015
- Hardness Block (57-70) HRC
- Hardness Block (20-33) HRC
- Hardness Block (85-100) HRB
- Ø1.588mm Ball Indenter
- Accessories Box
- Anti-dust Cover
- Qualified Certificate
- Ø1.588mm Steel Ball
- Cone Diamond Indenter
- Ø 150mm Flat anvil
- Ø 40mm V-shape Anvil
- Weight A
- Weight B
- Weight C
- Manual
Manufacturer: ROK International Industry Co., Limited
