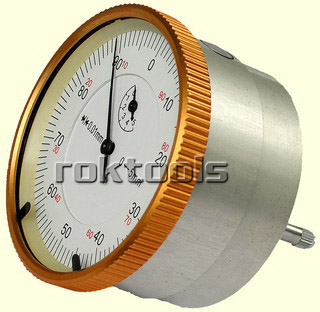

This kind of dial indicator has the similar structure to the general one, While the bezel and measuring stem  form with 90 degree angle, Professional User can read the dial on the top when the tip measuring on the bottom.

Range: 0-1mm 0-3mm, 0-5mm

Resolution: 0.01mm

Bezel: 58mm

Packed with wooden box

Weight: 0.35KG

Both metric and Inch are available



Order No	Range(mm)	Resolution(mm)	Dial Diam(mm)
EI-111	0-1	0.01	58
EI-113	0-3	0.01	58
EI-115	0-5	0.01	58
