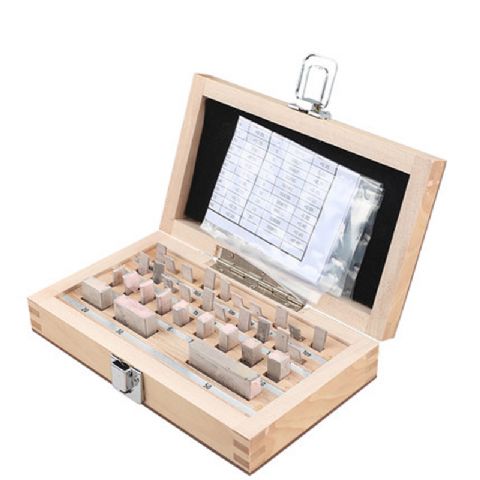

Gauge Block Sets Slip Gauge For Micrometer Calibration
The sets is designed for 0-25mm, 25-50mm, 50-75mm, 75-100mm micrometer, including digital micrometer and mechanical micrometer, There are three grades(classes) , namely 0, 1, 2.
Specification:
GB-16025 0-25mm micrometer 2.5, 5.1, 7.7, 10.3, 12.9, 15, 17.6, 20.2, 22.8, 25mm
GB-16050 25-50mm micrometer 25, 27.5, 30.1, 32.7, 35.3, 37.9, 40, 42.6, 45.2, 47.8, 50mm
GB-16075 50-75mm micrometer 50. 52.5, 55.1, 57.7, 60.3, 62.9, 65, 67.6, 70.2, 72.8, 75mm
GB-16100 75-100mm micrometer 75, 77.5, 80.1, 82.7, 85.3, 87.9, 90, 92.6, 95.2, 97.8, 100mm
