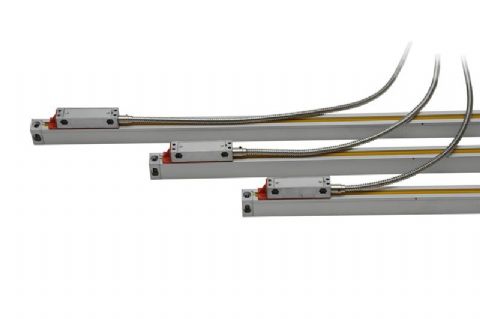

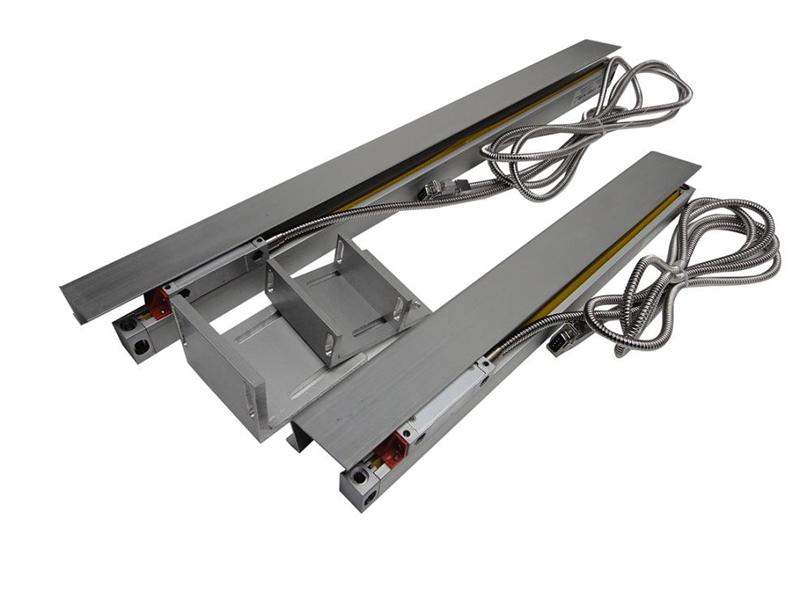

Linear Scale With 0.005mm Resolution
Descrition:
--Bench marks:The grating period: 20um optical linear scale.
--Grating system: The tansmissive and infrared optical measuring system, the infrared wave length is 880nm.
--Reading head sliding system: vertical or 45°five precision bearing system
Features:
Biggest working speed 60m/min
Zero Reference Point 50mm/Piece
Sealing Protection IP55
Specifications and Part No:
|
Order NO
|
Range
|
Resolution
|
|
LISC-10001
|
50-300mm
|
0.005mm
|
|
|
301-500mm
|
|
|
|
501-800mm
|
|
|
|
801-1000mm
|
|
|
|
1100mm
|
0.005mm
|
Note: with 3M Signal Cable
