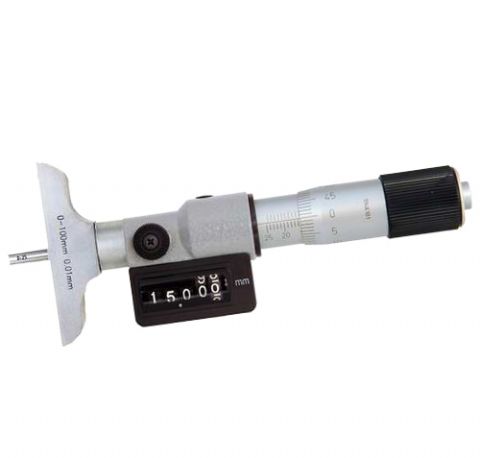

u-Digit Depth Micormeter with Wide Base
Zoom Browse
Product Name: u-Digit Depth Micormeter with Wide Base
Product Numbers: DM-113501
Product Specifications: 0-300mm/0-12inch
Product Unit: Flat Spindle and Spherical Spindle
Product Remark: With Rods to extension
Product Class:Measuring Tools > Micrometer > Depth Micrometers
Product Details
【DateTime:2014-05-05 Browse:】【Font: Big Mid Small】【Print】【Close】
u-Digit Depth Micormeter with Wide Base
Part No: DM-143501
Features:
  • Ratchet friction thimble
  • Interchangeable rods provide a wide measuring range.
  • Do not reset the micrometer when changing rods
  • With digit counter
  • Base: 63mmand 101.5mm for metric.  2.5inch and 4inch for inch type.
  • Measuring Contact: Flat and Spherical type.
  • Resolution:  Heads: 0.01mm/0.0001inch. Counter Readout: 0.001mm/0.0001inch.

    Metric
    Base Width: 63mm Flat measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113501
    0-25mm
    0.01mm
    1
    DM-113502
    0-50mm
    0.01mm
    2
    DM-113503
    0-100mm
    0.01mm
    4
    DM-113504
    0-150mm
    0.01mm
    6
    DM-113505
    0-200mm
    0.01mm
    8
    DM-143506
    0-300mm
    0.01mm
    12


    Inch
    Base Width: 2.5inch  Flat measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-143501Y
    0-25mm
    0.01mm
    1
    DM-113502Y
    0-50mm
    0.01mm
    2
    DM-113503Y
    0-100mm
    0.01mm
    4
    DM-113504Y
    0-150mm
    0.01mm
    6
    DM-113505Y
    0-200mm
    0.01mm
    8
    DM-113506Y
    0-300mm
    0.01mm
    12

    Metric
    Base Width: 101.5mm Flat measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113511
    0-25mm
    0.01mm
    1
    DM-113512
    0-50mm
    0.01mm
    2
    DM-143513
    0-100mm
    0.01mm
    4
    DM-113514
    0-150mm
    0.01mm
    6
    DM-113515
    0-200mm
    0.01mm
    8
    DM-113516
    0-300mm
    0.01mm
    12
    •

    Inch
    Base Width: 4"mm Flat measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113511Y
    0-25mm
    0.01mm
    1
    DM-113512Y
    0-50mm
    0.01mm
    2
    DM-113513Y
    0-100mm
    0.01mm
    4
    DM-113514Y
    0-150mm
    0.01mm
    6
    DM-113515Y
    0-200mm
    0.01mm
    8
    DM-113516Y
    0-300mm
    0.01mm
    12

    Metric
    Base Width: 63mm Spherical measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113521
    0-25mm
    0.01mm
    1
    DM-113522
    0-50mm
    0.01mm
    2
    DM-113523
    0-100mm
    0.01mm
    4
    DM-113524
    0-150mm
    0.01mm
    6
    DM-113525
    0-200mm
    0.01mm
    8
    DM-113526
    0-300mm
    0.01mm
    12

    Inch
    Base Width: 2.5 Spherical measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113521Y
    0-25mm
    0.01mm
    1
    DM-113522Y
    0-50mm
    0.01mm
    2
    DM-113523Y
    0-100mm
    0.01mm
    4
    DM-113524Y
    0-150mm
    0.01mm
    6
    DM-113525Y
    0-200mm
    0.01mm
    8
    DM-113526Y
    0-300mm
    0.01mm
    12


    Metric
    Base Width: 101.5mm Spherical measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113531
    0-25mm
    0.01mm
    1
    DM-113532
    0-50mm
    0.01mm
    2
    DM-113533
    0-100mm
    0.01mm
    4
    DM-113534
    0-150mm
    0.01mm
    6
    DM-113535
    0-200mm
    0.01mm
    8
    DM-113536
    0-300mm
    0.01mm
    12

    Inch
    Base Width: 4inch Spherical measuring contact.
    Order NO
    Range
    Resolution
     Rods
    DM-113531Y
    0-25mm
    0.01mm
    1
    DM-113532Y
    0-50mm
    0.01mm
    2
    DM-113533Y
    0-100mm
    0.01mm
    4
    DM-113534Y
    0-150mm
    0.01mm
    6
    DM-113535Y
    0-200mm
    0.01mm
    8
    DM-113536Y
    0-300mm
    0.01mm
    12
