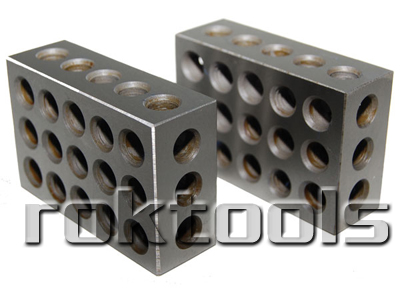

Precision Ground 23 Hole 1-2-3‘ Setup Blocks
A tool used in machining fields, especially milling, to aid in setup. It is a block of steel that is precisely squared and parallel whose sides are 1, 2, and 3 inches long, respectively. Similar, larger blocks are called 2-4-6 blocks
Part NO: PABL-10101
Features:
----Made from high-chrome steel to help reduce wear and corrosion.
---- Ground and case-hardened on all six surfaces, making all sides equally usable.
----23 holes for versatility.
---- Oversized to allow for normal tapping .0001" - .0003"
----Cross-drilling design for extra strength and minimum weight.
----Five 3/8-16 tapped holes are provided for clamping.
|
Art No
|
Paralled
|
Squareness
|
Resolution
|
Hole
|
|
PABL-10101
|
0.0002“
|
---
|
+/-0.0002”
|
23
|
|
PABL-10102
|
0.0002“
|
0.0003/1
|
+/-0.0002”
|
23
|
|
PABL-10103
|
0.0002“
|
0.0003/1
|
+/-0.0003”
|
23
|
|
PABL-10104
|
0.0002“
|
0.0001/1
|
+/-0.0003”
|
23
|
